Type |
DG - 210 |
DG - 220 |
DC - 210 |
DF - 206 |
Nomenclature |
Standard |
High Range |
Low Curvature |
Finger Tip |
Thickness Range in
Steel ( mm ) |
1.5 to 100.0 |
3.0 to 199.9 |
1.5 to 10.0 |
1.5 to 10.0 |
Surface |
Flat & Curved
( Above 50mm in dia. ) |
Only curved |
Restricted |
Curvature Range
( mm ) |
OD 50mm & above |
OD 50mm & above |
OD 25 to 50mm |
OD 50mm & above |
Sensing Face
Diameter ( mm ) |
10 |
20 |
10 |
6 |
Probe Size ( mm )
Dia X Height |
Ø 15 X 30h |
Ø 25 X 40 h |
Ø 15 X 30h |
Ø 11 X 40h |
Maximum Surface
Temp. (C) |
- 25 to + 70 |
Couplant |
Ordinary Oil,
Glycerine, Grease. |
|
| |

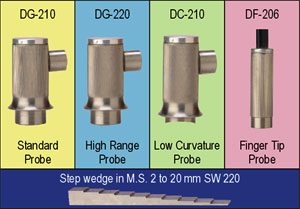

| ULTRASONIC PROBES: |
| DG - 210 : |
Standard Probe : |
For plane and externally curved surface like pipes, cylinders of |
| |
|
outer diameter more than 50mm. |
| DG - 220 : |
High Range Probe : |
For thickness more than 100 mm |
| DC - 210 : |
Low Curvature Probe : |
For smaller diameter curved surface like pipes with outer |
| |
|
diameter between 25 to 50mm. |
| DF - 206 : |
Finger Tip Probe : |
For closely spaced or congested areas. |
|
| |
| |
